    Light Energy Effects on Matter
    Elementary School Experiments
    For Science Labs, Lesson Plans, Class Activities & Science Fair Projects

    This experiment is courtesy of

    Let There Be Light


    Colette Coyne
    St. Dominic School
    Philadelphia, PA

    Dr. Steve Bohan
    Rohm and Haas Company
    Bristol, PA




    Heat and Energy


    Students will come to learn that different types of light affect matter differently. In particular we wish to show that in sunlight there are several components, some of which can be harmful even though they cannot be seen or felt.


    Students will come to see that different lights have an effect on matter. In particular, the students will see the effects of ultraviolet light concluding that even though it cannot be seen, it is powerful and can cause change.


    The spectrum of light which we see is only a tiny part of what makes up sunlight. The sunlight has many components, some of which we can see and feel, and some which we cannot. Yet, each part of sunlight can cause changes to occur in matter both individually and collectively. Three of the many components of sunlight used in this experiment are familiar to most children. They are:  infrared, visible or incandescent, and ultraviolet light.


    • 1 prism
    • 1 infrared heat lamp (250 Watts)
    • 1 soft white incandescent light (200 Watts)
    • 1 ultraviolet lamp
    • Appropriate lighting apparatus needed for all sources as bulbs get VERY hot. Lighting apparatus should also shield the children's eyes from the direct light of the bulbs.
    • 2 pieces of 8 1/2 x 11 inch ORANGE construction paper
    • 6 cardboard cutouts - same size and shape (geometric shapes, paper dolls, etc.)
    • 5 thermometers
    • tape
    • timer

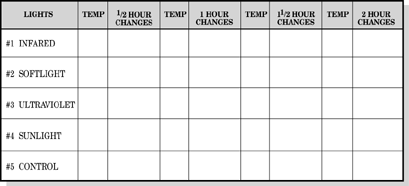

    • graph for charting results


    This experiment cannot be done in one class period. It can be completed over the course of a 2-hour period.

    This is a teacher demonstrated experiment.  It can be done in conjunction with other experiments on heat and light energy.



    1. To begin this experiment, use a prism to show that light is made up of many things, like the colors of the spectrum. Even though we cannot see them , the colors as well as other forms of energy are there.


    2. The teacher will set up lights, making sure bulbs are facing downward about 25 cm from the flat surface your samples will be resting on. If lights are hanging side by side, be sure to place a non-flammable barrier between them. Otherwise spread out the lights.


    3. Cut each piece of orange construction paper into 4 equal parts. This will leave you with 8 samples.


    4. Tape 1 cutout to the center of each sample. Do not use a lot of tape. The 2 blank pieces are extra.


    5. Label the samples from one to six. Be sure to label each cutout 1-6. In this way, you will not get the samples confused when you observe them.


    6. Turn on the lights. Introduce each light to the children. Ask if they have ever seen the lights. Explain the uses of each light.

      a. Infrared (heat lamp) #1:
      This lamp is used for commercial purposes. It is used to dry things quickly. It helps keep food warm in restaurants.

      b. Incandescent lights #2:
      This light is the kind of lights found in our homes. They are used to help us see in the darkness.

      c. Ultraviolet lights. #3:
      This kind of light helps chemical reactions to occur. Plants use this to make food and help them to grow. Dentists use them to help things bond. Some companies use them to help things adhere quickly.


    7. Once the lights are on, let the children feel the heat differences by placing their hands under each light. Let them describe the way they feel. Record what they feel on the chart.


    8. Take the temperature of each light by placing a thermometer under each for about 5 minutes. Record the temperature on the chart.


    9. Make predictions about each lamp once you have recorded the temperature.
      Ask: If I were to place a rock under each light, what would happen to it?  If I were to place a rock in the sunlight, what would happen to it?
      Record all the answers the children offer.


    10. Now, place the picture labeled 1 under the infrared light (#1). Place the picture labeled 2 under the incandescent light (#2). Place the picture labeled 3 under the ultraviolet light (#3). Place picture #4 in the sunniest spot in your room. Place picture #5 and #6 in your drawer away from light.


    11. Make predictions about what changes the children will see and feel. Let the paper sit in the light for 1/2 hour. Set the timer.


    12. After 1/2 hour, take each sample from beneath the lamps. Let the paper sit in the light for 1/2 hour. Set the timer.


    13. Place the cutout back on the samples (don't mix them up). Take the temperature under each lamp. Record the results. Place the samples back under each lamp as you did in step #10. Set the timer and check again in 1/2 hour.


    14. At each 1/2 hour interval, record the changes on each sample. Be sure to take the temperature before placing them back under the lights.


    15. At the end of 2 hours, take samples from under the lights and turn the lights off. Remove the cutout from each sample. Compare each sample to the control in the drawer. Compare each sample to the one left in the sun.


    16. Which of the samples look very different? Which ones changed the most? Which samples changed the least? How do the results compare with the predictions?  Did the samples under the hottest temperatures change the most?  Did the samples under the ultraviolet light change at all?


    Guide the children's thinking to conclude that sunlight and ultraviolet light caused the most change. Help the children realize that even though they could not feel the heat of the ultraviolet light, the ultraviolet light did indeed create a visible change.  Tell the children that the sunlight is a combination of all three of these lights and it is a very powerful form of energy.


    On a cloudy, overcast day, place sample #6 on the windowsill. Compare results with other samples.

    Draw a mural showing how sunlight affects plants.

    Write to suntan lotion companies asking for statistics on how their products protect people from the sun.

    Have children create their own "sunscreens". Clothes, lotion, umbrellas, hat, whatever. Have them draw a picture of their creations. Have them write an ad campaign to explain how it works. Use persuasive writing to get people to buy their products.

    Find information and make a bulletin board concerning ozone depletion and ways to counteract the trend.

    Get books on solar power and design ways to harness the sun's energy.

    Bring in a guest speaker to talk about recycling.

    Plant a tree.
